TP-Link TL-SG2452P JetStream 48-Port Gigabit Smart PoE+ Switch with 4 SFP Slots
| Brand | TP-Link |
| Ports Type |
RJ-45 (PoE+) SFP |
| Data Tranfer Rates | Gigabit |
| Network Ports |
48 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) 4 Gigabit SFP Slots |
| Product | TP-Link TL-SG2452P JetStream 48-Port Gigabit Smart PoE+ Switch with 4 SFP Slots |
| Device Type | Gigabit Smart PoE+ Switch |
| Features |
Supports 48 802.3at/af-compliant PoE+ ports with a total power supply of 384W L2+ Feature——Static Routing, helps route internal traffic for more efficient use of network resources IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X and Radius Authentication provide you robust security strategies L2/L3/L4 QoS and IGMP snooping optimize voice and video applications IPv6 support with dual IPv4/IPv6 stack, MLD snooping, IPv6 neighbor discovery WEB/CLI managed modes, SNMP, RMON and Dual Image bring abundant management features |
| Dimensions | 440 x 330 x 44 mm |
| Package Contents |
T1600G-52PS Power Cord Installation Guide Resource CD Rackmount Kit Rubber Feet |
| OTHERS |
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) 1000BASE-X: MMF, SMF Power Consumption Maximum (PoE on): 470.4W (220V/50Hz) Maximum (PoE off): 46.5W (220V/50Hz) Bandwidth/Backplane: 104Gbps Packet Forwarding Rate: 77.4Mpps |
- Manufacturer Warranty
- 3 Years Limited Warranty
- Manufacturer Contact Info
-
http://www.tp-link.com.au
1300 875 465
JetStream 48-Port Gigabit Smart PoE+ Switch with 4 SFP Slots
Supports 48 802.3at/af-compliant PoE+ ports with a total power supply of 384W L2+ Feature——Static Routing, helps route internal traffic for more efficient use of network resources IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X and Radius Authentication provide you robust security strategies L2/L3/L4 QoS and IGMP snooping optimize voice and video applications IPv6 support with dual IPv4/IPv6 stack, MLD snooping, IPv6 neighbor discovery WEB/CLI managed modes, SNMP, RMON and Dual Image bring abundant management features
What This Product Does
The T1600G-52PS provides 48 10/100/1000Mbps RJ45 Ports which support 802.3at/af-compliant PoE, with a total PoE power supply up to 384W, powerful and flexible enough for users to deploy wireless access points or IP-based network surveillance cameras. The switch is also equipped with 4 Gigabit SFP slots, expanding your network flexibly. In addition, it provides high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, and useful security strategies.
Static Routing helps route internal traffic for more efficient use of network resources. The Storm Control feature protects against Broadcast, Multicast and Unknown unicast Storm. 802.1X and Radius Authentication allows network client to be authenticated through external Radius Servers. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. Moreover, the easy-to-use web management interfaces, along with SNMP, RMON and Dual Image, mean faster setup and configuration with less downtime. With all these advanced features, the JetStream Gigabit Smart PoE+ Switch T1600G-52PS is an ideal choice for projects or business networks which need PoE function.
IEEE 802.3at/af-compliant Power over Ethernet
The T1600G-52PS provides 48 10/100/1000Mbps RJ45 Ports that support 802.3at/af-compliant PoE, with a total PoE power supply up to 384W to power any 802.3at/af compliant power device. Compact and flexible, the T1600G-52PS is ideal to flexibly use PoE to deploy wireless access points or IP-based network surveillance cameras for projects or small business networks.
Abundant L2 and L2+ features
T1600G-52PS supports rich L2 features, including 802.1Q tag VLAN, Port Isolation, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Group and 802.3x Flow Control function. Besides, the switch provides advanced features for network maintenance such as Loop Back Detection, Cable Diagnostics and IGMP Snooping. IGMP snooping ensures the switch intelligently forward the multicast stream only to the appropriate subscribers while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Moreover, T1600G-52PS supports L2+ feature—static routing, which is a simple way to provide segmentation of the network with internal routing through the switch and helps network traffic for more efficient use.
Secure Networking
T1600G-52PS supports IP-MAC-Port Binding, Port Security, Storm control and DHCP Snooping which protect against broadcast storms, ARP attacks, etc. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports and even VLAN ID. Moreover, the switch supports 802.1X, which allows network clients to be authenticated through external Radius servers. Guest VLAN function supports to enable the non-802.1X clients to access the specific network resource.
Advanced QoS features
To integrate voice, data and video service on one network, the switch applies rich QoS policies.
Administrator can designate the priority of the traffic based on a variety of means including Port Priority, 802.1P Priority and DSCP Priority, to ensure that voice and video are always clear, smooth and jitter free.
Enterprise Level Management Features
T1600G-52PS is easy to use and manage. It supports various user-friendly standard management features, such as intuitive web-based Graphical User Interface(GUI) or industry-standard Command Line Interface(CLI), SNMP (v1/2/3) and RMON support enables the switch to be polled for valuable status information and send traps on abnormal events. And comprehensive IPv6 supporting management ensures a smooth migration to IPv6-based network. Besides, it also supports Dual Image, which provides reduced down-time for the switches, when the image is being upgraded / downgraded.
Highlights
PoE Features
- Standard: 802.3at/af compliant with up to 30W per port
- PoE+ Ports: 48 Ports
- Power Supply: 384W
- PoE Schedule (Time-based Settings)
L2 and L2+ Features
- Static Routing
- Link Aggregation Control Protocol (LACP)
- 4k VLANs
- STP/RSTP/MSTP
- IGMP Snooping
- LLDP / LLDP-MED
Security Strategies
- Access Control List (L2~L4 ACL)
- IP-MAC-Port Binding
- 802.1x and Radius Authentication
- Port Security
- Strom Control
- SSL and SSH encryptions
- Dos Defend
Quality of Service
- 8 priority queues
- 802.1P/DSCP QoS
- Voice VLAN
Management
- Web-based GUI
- Command Line Interface (through telnet)
- SNMP v1/v2c/v3
- RMON (1, 2, 3, 9 group)
- IPv6 Management
- Dual Image

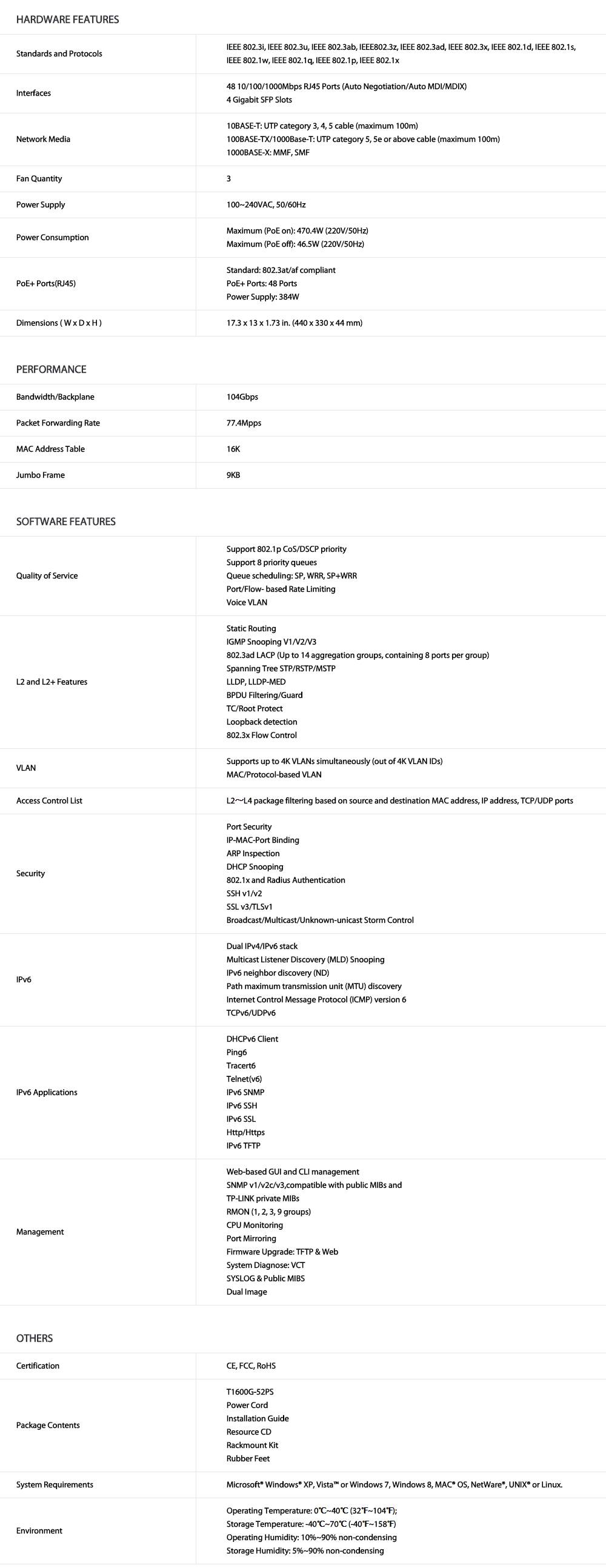

Specifications
| Price | $854.00 |
|---|---|
| Product Name | TP-Link TL-SG2452P JetStream 48-Port Gigabit Smart PoE+ Switch with 4 SFP Slots |
| Stock Level | In stock at supplier |
| SKU | TL-SG2452P |
| Manufacturer Warranty |
|
| Description |
Tp-link Tl-sg2452p T1600g-52ps Jetstream 48-port Gigabit Smart Switch With 4 Sfp Slots 384w Poe+ 802.1q Vlan Port Security Storm Control L2/l3/l4 Qos
JetStream 48-Port Gigabit Smart PoE+ Switch with 4 SFP Slots Supports 48 802.3at/af-compliant PoE+ ports with a total power supply of 384W L2+ Feature——Static Routing, helps route internal traffic for more efficient use of network resources IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X and Radius Authentication provide you robust security strategies L2/L3/L4 QoS and IGMP snooping optimize voice and video applications IPv6 support with dual IPv4/IPv6 stack, MLD snooping, IPv6 neighbor discovery WEB/CLI managed modes, SNMP, RMON and Dual Image bring abundant management features What This Product Does The T1600G-52PS provides 48 10/100/1000Mbps RJ45 Ports which support 802.3at/af-compliant PoE, with a total PoE power supply up to 384W, powerful and flexible enough for users to deploy wireless access points or IP-based network surveillance cameras. The switch is also equipped with 4 Gigabit SFP slots, expanding your network flexibly. In addition, it provides high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, and useful security strategies. Static Routing helps route internal traffic for more efficient use of network resources. The Storm Control feature protects against Broadcast, Multicast and Unknown unicast Storm. 802.1X and Radius Authentication allows network client to be authenticated through external Radius Servers. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. Moreover, the easy-to-use web management interfaces, along with SNMP, RMON and Dual Image, mean faster setup and configuration with less downtime. With all these advanced features, the JetStream Gigabit Smart PoE+ Switch T1600G-52PS is an ideal choice for projects or business networks which need PoE function. IEEE 802.3at/af-compliant Power over Ethernet The T1600G-52PS provides 48 10/100/1000Mbps RJ45 Ports that support 802.3at/af-compliant PoE, with a total PoE power supply up to 384W to power any 802.3at/af compliant power device. Compact and flexible, the T1600G-52PS is ideal to flexibly use PoE to deploy wireless access points or IP-based network surveillance cameras for projects or small business networks. Abundant L2 and L2+ features T1600G-52PS supports rich L2 features, including 802.1Q tag VLAN, Port Isolation, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Group and 802.3x Flow Control function. Besides, the switch provides advanced features for network maintenance such as Loop Back Detection, Cable Diagnostics and IGMP Snooping. IGMP snooping ensures the switch intelligently forward the multicast stream only to the appropriate subscribers while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Moreover, T1600G-52PS supports L2+ feature—static routing, which is a simple way to provide segmentation of the network with internal routing through the switch and helps network traffic for more efficient use. Secure Networking T1600G-52PS supports IP-MAC-Port Binding, Port Security, Storm control and DHCP Snooping which protect against broadcast storms, ARP attacks, etc. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports and even VLAN ID. Moreover, the switch supports 802.1X, which allows network clients to be authenticated through external Radius servers. Guest VLAN function supports to enable the non-802.1X clients to access the specific network resource. Advanced QoS features To integrate voice, data and video service on one network, the switch applies rich QoS policies. Administrator can designate the priority of the traffic based on a variety of means including Port Priority, 802.1P Priority and DSCP Priority, to ensure that voice and video are always clear, smooth and jitter free. Enterprise Level Management Features T1600G-52PS is easy to use and manage. It supports various user-friendly standard management features, such as intuitive web-based Graphical User Interface(GUI) or industry-standard Command Line Interface(CLI), SNMP (v1/2/3) and RMON support enables the switch to be polled for valuable status information and send traps on abnormal events. And comprehensive IPv6 supporting management ensures a smooth migration to IPv6-based network. Besides, it also supports Dual Image, which provides reduced down-time for the switches, when the image is being upgraded / downgraded. Highlights PoE Features
L2 and L2+ Features
Security Strategies
Quality of Service
Management
Specifications
|
