Model

Brand

TP-LINK

Model

ARCHER C9

Spec

Standards

IEEE 802.11ac/n/a 5GHz
IEEE 802.11b/g/n 2.4GHz

Security

64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryption

WPA/WPA2

WPA2

WAN Ports

1 x 10/100/1000M

LAN Ports

4 x 10/100/1000M

Buttons

WPS/Reset Button,
Wireless On/Off Button,
Power On/off Button

Frequency Band

2.4GHz/5GHz

Antenna

3 dual band detachable antennas

Transmitted Power

CE:
<20dBm(2.4GHz)
<23dBm(5GHz)
FCC:
<30dBm

Receiver Sensitivity

5GHz:
11a 6Mbps: -96dBm
11a 54Mbps: -79dBm
11ac HT20: -71dBm
11ac HT40: -66dBm
11ac HT80: -63dBm
2.4GHz
11g 54M: -77dBm
11n HT20: -74dBm
11n HT40: -72dBm

Interface

1 USB 3.0 Port + 1 USB 2.0 Port

Power Adapter

12V/3.3A

System Requirements

Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, Windows 8, MAC OS, NetWare, UNIX or Linux

Dimensions

6.60" x 8.70" x 3.40" (H x W x D)

Temperature

Operating Temperature: 0 degree C~40 degree C (32 degree F~104 degree F)
Storage Temperature: -40 degree C~70 degree C (-40 degree F~158 degree F)

Humidity

Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Features

Features

Wireless and Wired Performance

- Supports 802.11ac – The next generation of Wi-Fi
- Dual band – for combined wireless speeds of up to 1.9Gbps at 2.4GHz and 5GHz band concurrently
- 3 dual ban detachable antennas provide maximum Omni-directional wireless coverage and reliability
- Full gigabit ports ensure ultrafast data transfer speeds
- USB 3.0 + USB 2.0 Ports – easily share a printer locally and files & media with networked devices or remotely via FTP server

Control and Security
- Guest Network Access provides secure Wi-Fi access
- IP-based Bandwidth Control makes it easier for you to manage the bandwidth of devices connected to the router
- WPA-PSK/WPA2-PSK encryptions provide user networks with active defense against security threats

Ease of Use
- Easy Setup Assistant supporting for multiple languages provides a quick & hassle free installation
- Easy one-touch WPA wireless security encryption with the WPS button
- Wi-Fi On/Off Button allows users to turn their wireless radio on or off Others

IPv6 supported, meeting the demands for the next generation of Internet

Packaging

Package Contents

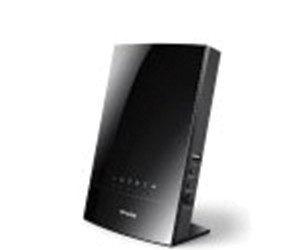

AC 1900 Wireless Dual Band Gigabit Router Archer C9
3 detachable antennas
Power supply unit
Resource CD
Ethernet Cable
Quick Installation Guide
